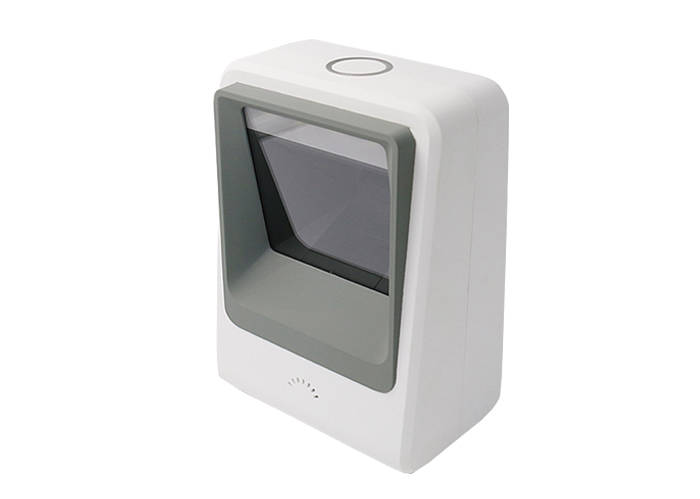

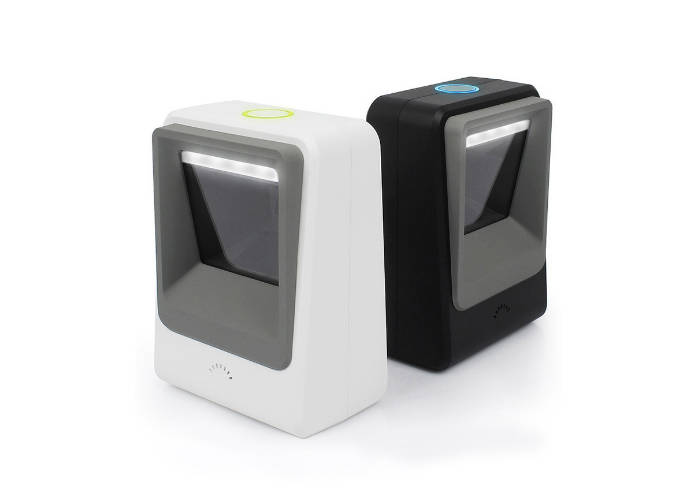

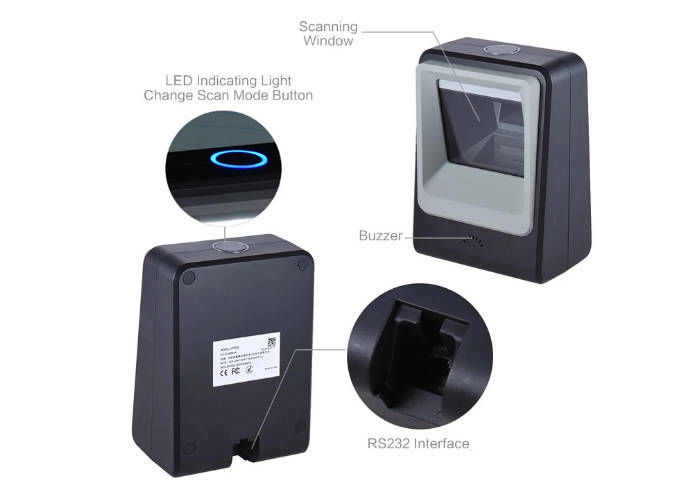

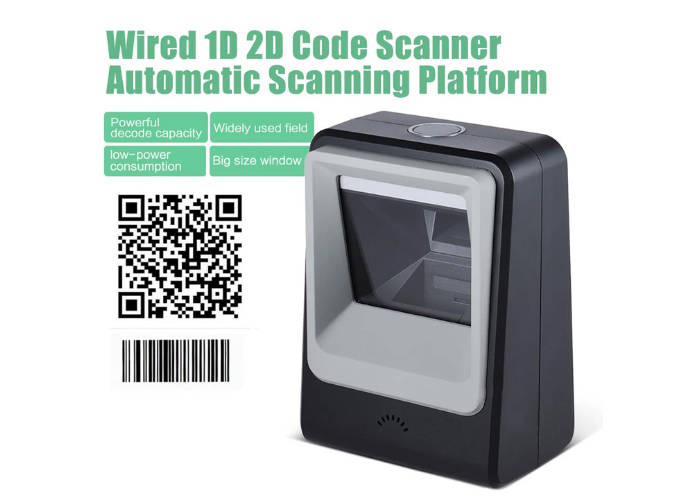

Automatic desktop scanner that allows you to scan both 1D and 2D codes without having to press any button. It has three operating modes in its repertoire - fully automatic, adapting to read from a mobile phone display and an extremely fast mode for reading only 1D codes.
It can be connected to the terminal using either USB or serial interface. The ideal reading distance is 5 to 15 cm.
| Parametr | Údaj |
|---|---|
| CPU | 32bit ARM |
| Senzor | CMOS |
| Light source | 617nm LED, 65000K |
| Sensing speed | 635 mm/s |
| Scanning distance | 5–15 cm |
| Resolution | SGA-W, 640 × 480 px |
| Minimum contrast | 25% |
| Sound signalling | Yes |
| LED signalling | Yes |
| Shooting modes | Automatic, mobile display, fast 1D scan |
| Connecting | USB, serial |
| 1D scanning | EAN-8, EAN-13, Codabar, CODE 39, CODE 93, CODE 128, China Post, GS1-128, UPC-A, UPC-E, ISBN/ISSN, ISBT , Interleaved 2 of 5， Standard 2 of 5 Matrix 2 of 5，Industrial 2 of 5 , MSI, RSS, ITF14, Telepen, etc. |
| 2D scanning | QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF417, Maxicode, Aztec, Hanxin, etc. |
